Fastest Huawei Smartax MT841 Router Open Port Instructions

Thumbnail image of Port Forward Staff
Port Forward Staff
September 19, 2018 (Last Updated: ) | Reading Time: 4 minutes

Huawei Smartax-MT-841 routers include a very basic firewall that helps protect your home network form unwanted access from the internet. Since this firewall blocks incoming connections you may need open a port through it for certain games and applications. This process of opening a port is frequently called a port forward, since you are forwarding a port from the internet to your home network.

The basic process to open a port is:

  1. Setup a static IP address on either your computer or device that you want to forward a port to.
  2. Login to your Huawei Smartax MT841 router.
  3. Navigate to the port forwarding section.
    • Click the Advanced link.
    • Click the NAT link.
    • Click the NAT Entries link.
    • Click the New link.
  4. Create a port forward entry.

While these steps might seem difficult at first, we will walk you through each step for your Huawei Smartax-MT-841 router.

We think that forwarding a port should be easy. That's why we created Network Utilities. Our software does everything that you need to forward a port.

Get Started Now!

When you use Network Utilities you get your port forwarded right now!

Step 1

It is important to setup a static ip address in the device that you are forwarding a port to. This ensures that your ports will remain open even after your device reboots.

This step is important because you want a permanent IP address in your device. If you do not set up a permanent IP address in your device, then when you device reboots it may get a new IP address.

Step 2

Now we are going to login to your Huawei Smartax-MT-841 router. Your router has a web interface, so you will login to it using your web browser. This can be either Chrome, Firefox, Internet Explorer, or Edge. It usually does not matter which browser you choose to use.

Open up your web browser and find the address bar. It should look something like this:

Image of a browser address bar
Browser address bar

Above is an example of what a web browser address bar looks like. Find the address bar in your router and type in your router's IP address.

The default Huawei Smartax MT841 IP Address is:

After entering the IP address of your router you can simply press enter. If all goes well you will see the following screen:

Huawei Smartax-MT-841
Screenshot of Huawei Smartax-MT-841.

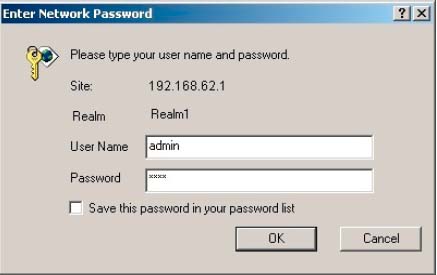

You should see a box prompting you for your username and password.

Enter your username and password, and then click the Login button to log in to your Huawei Smartax-MT-841 router.

Huawei Usernames and Passwords

If your username and password do not work then please visit our Default Huawei Router Passwords page.

If you still can't login to your router because you forgot your Huawei Smartax-MT-841 router username and password, use our How to Reset a Router Password guide to set your Huawei Smartax-MT-841 router back to its factory settings.

Step 3

Now we need to find the port forwarding section in your router. Here's how you do it. Starting from the first page in your router:

Huawei Smartax-MT-841
Screenshot of Huawei Smartax-MT-841.

Click the Advanced link near the left of the page.

Click the NAT link.

Huawei Smartax-MT-841
Screenshot of Huawei Smartax-MT-841.

Click the NAT Entries link near the top of the page.

Huawei Smartax-MT-841
Screenshot of Huawei Smartax-MT-841.

Click the New link near the bottom of the page.

Huawei Smartax-MT-841 port forward
Screenshot of Huawei Smartax-MT-841 port forward.

Step 4

Here are the ports to forward for Xbox Live:

  • TCP Ports: 3074
  • UDP Ports: 3074

If you are looking for the ports for a different application you can find it by either:

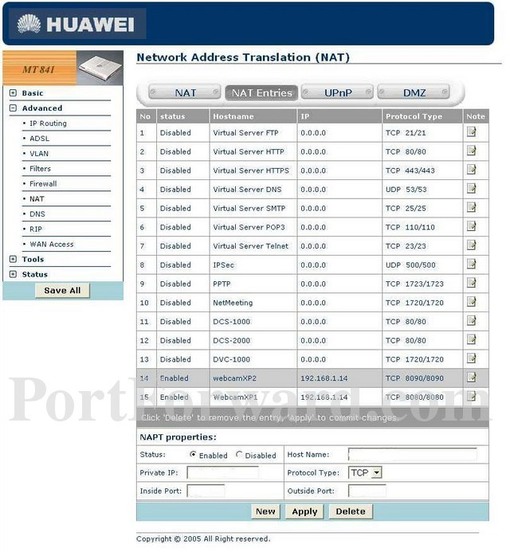

Put a dot in the Status Enabled radio button to turn this rule on. Enter a name that describes the application you are forwarding ports for in to the Host Name box. Enter your computer's or your device's IP address in to the Private IP box. Select the protocol that the application requires from the Protocol Type drop down box. If you don't know what protocol to select, take a look at our ports page. Put the port to forward in to the the Inside Port box, and again in the Outside Port box. This router only allows you to forward one port at a time. If you need to forward a large range of ports, I would advise you to purchase a different router.

Enter the IP address to forward these ports to into the Private IP box. If you are forwarding ports so you can run a program on your device, you should enter your device's IP address into that box.

Enter the name of the program into the Host Name box. It doesn't really matter what you put into this box, but something that will remind you why these ports are being forwarded would be a good idea.

Use the Protocol Type drop down box to select the protocol type of the ports you are forwarding.

Enter the port to forward into the Inside Port and the Outside Port boxes.

When you are finished, click the Apply button.

Your ports should now be open. It is time to test them.

Test if Your Ports are Open

Now that you have forwarded ports on the Huawei Smartax-MT-841 you should test to see if your ports are forwarded correctly.

To test if your port has been properly forwarded, you can use our Network Utilities tool, which includes a free Open Port Checker. Our Open Port Check tool is the only online port checking tool with Guaranteed Results.
