Dell TrueMobile-2350 routers include a very basic firewall that helps protect your home network form unwanted access from the internet. Since this firewall blocks incoming connections you may need open a port through it for certain games and applications. This process of opening a port is frequently called a port forward, since you are forwarding a port from the internet to your home network.
The basic process to open a port is:
- Setup a static IP address on either your computer or device that you want to forward a port to.
- Login to your Dell TrueMobile 2350 router.
- Navigate to the port forwarding section.
- Click the Advanced Settings button.
- Click the Port Forward Settings button.
- Click the Add button.
- Create a port forward entry.
While these steps might seem difficult at first, we will walk you through each step for your Dell TrueMobile-2350 router.
It is important to setup a static ip address in the device that you are forwarding a port to. This ensures that your ports will remain open even after your device reboots.
- Recommended - Our free Static IP Setter will set up a static IP address for you.
- Another way to get a permanent IP address is to set up a DHCP reservation.
- Or, manually create a static ip address with our Static IP Guides.
This step is important because you want a permanent IP address in your device. If you do not set up a permanent IP address in your device, then when you device reboots it may get a new IP address.
Now we are going to login to your Dell TrueMobile-2350 router. Your router has a web interface, so you will login to it using your web browser. This can be either Chrome, Firefox, Internet Explorer, or Edge. It usually does not matter which browser you choose to use.
Open up your web browser and find the address bar. It should look something like this:
Above is an example of what a web browser address bar looks like. Find the address bar in your router and type in your router's IP address.
The default Dell TrueMobile 2350 IP Address is: 192.168.2.1
After entering the IP address of your router you can simply press enter. If all goes well you will see the following screen:

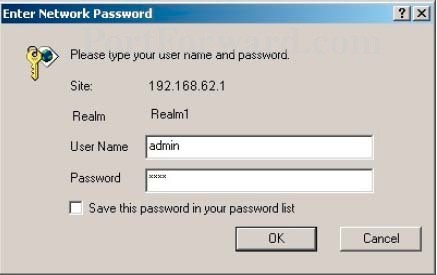

You should see a box prompting you for your username and password.
- The Default Dell TrueMobile 2350 Router Username is: admin
- The Default Dell TrueMobile 2350 Router Password is: admin
Enter your username and password, and then click the Login button to log in to your Dell TrueMobile-2350 router.
Dell Usernames and Passwords
If your username and password do not work then please visit our Default Dell Router Passwords page.
If you still can't login to your router because you forgot your Dell TrueMobile-2350 router username and password, use our How to Reset a Router Password guide to set your Dell TrueMobile-2350 router back to its factory settings.

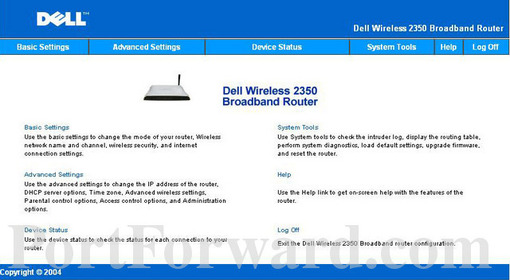

Now we need to find the port forwarding section in your router. Here's how you do it. Starting from the first page in your router:

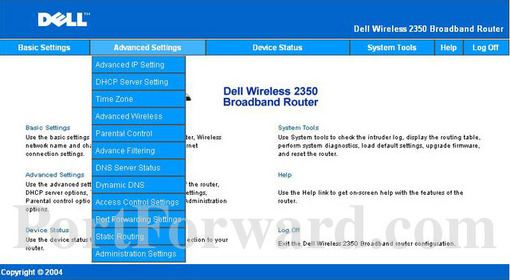

Click the Advanced Settings button near the top of the page.
Click the Port Forward Settings button.

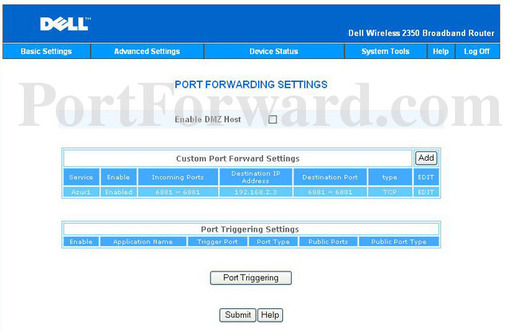

Click the Add button near the right of the page.
Here are the ports to forward for Xbox Live:
- TCP Ports: 3074
- UDP Ports: 3074
If you are looking for the ports for a different application you can find it by either:
Make sure that the Enable checkbox is checked.
Create a name for this forward and put it in the Service Name box. The name is only used as a reminder and has no effect on the port forward.
If you are only forwarding a single port then you can enter that same port number into the Incoming Ports From, Incoming Ports To, Destination Port From and Destination Port To boxes. If you are forwarding a range of ports then you need to enter the lowest number of the range into the Incoming Ports From and Destination Port From boxes and the highest number of the range into the Incoming Ports To and Destination Port To boxes.
Enter the IP address that you want to forward these ports to in the Destination IP Address box. You can enter either the IP address of your computer or the IP address of another computer or device on your network.
Select the protocol type of the ports you are forwarding from the Port Type box.
When you are finished, click the Submit button.
Your ports should now be open. It is time to test them.
Test if Your Ports are Open
Now that you have forwarded ports on the Dell TrueMobile-2350 you should test to see if your ports are forwarded correctly.
To test if your port has been properly forwarded, you can use our Network Utilities tool, which includes a free Open Port Checker. Our Open Port Check tool is the only online port checking tool with Guaranteed Results.
