MSI RG60G routers include a very basic firewall that helps protect your home network form unwanted access from the internet. Since this firewall blocks incoming connections you may need open a port through it for certain games and applications. This process of opening a port is frequently called a port forward, since you are forwarding a port from the internet to your home network.
The basic process to open a port is:
- Setup a static IP address on either your computer or device that you want to forward a port to.
- Login to your MSI RG60G router.
- Navigate to the port forwarding section.
- Click the Customized Configuration button.
- Click the Advanced link.
- Click the Virtual Server link.
- Create a port forward entry.
While these steps might seem difficult at first, we will walk you through each step for your MSI RG60G router.
It is important to setup a static ip address in the device that you are forwarding a port to. This ensures that your ports will remain open even after your device reboots.
- Recommended - Our free program will setup a static IP address for you. Download Network Utilities today!
- Another highly recommended way of getting a permanent IP address is to set up a DHCP Reservation.
- Or, follow our Static IP Address Setup guides.
With DHCP reservations you can manage your devices from your router. This centralizes the management of your network and helps prevent IP address conflicts. Using this method you do not have to log in to your devices separately.
Now we are going to login to your MSI RG60G router. Your router has a web interface, so you will login to it using your web browser. This can be either Chrome, Firefox, Internet Explorer, or Edge. It usually does not matter which browser you choose to use.
Open up your web browser and find the address bar. It should look something like this:
Above is an example of what a web browser address bar looks like. Find the address bar in your router and type in your router's IP address.
The default MSI RG60G IP Address is: 192.168.1.254
After entering the IP address of your router you can simply press enter. If all goes well you will see the following screen:
You should see a box prompting you for your username and password.
- The Default MSI RG60G Router Username is: admin
- The Default MSI RG60G Router Password is: admin
Enter your username and password, and then click the Login button to log in to your MSI RG60G router.
MSI Usernames and Passwords
If your username and password do not work then please visit our Default MSI Router Passwords page.
If you still can't login to your router because you forgot your MSI RG60G router username and password, use our How to Reset a Router Password guide to set your MSI RG60G router back to its factory settings.
Now we need to find the port forwarding section in your router. Here's how you do it. Starting from the first page in your router:

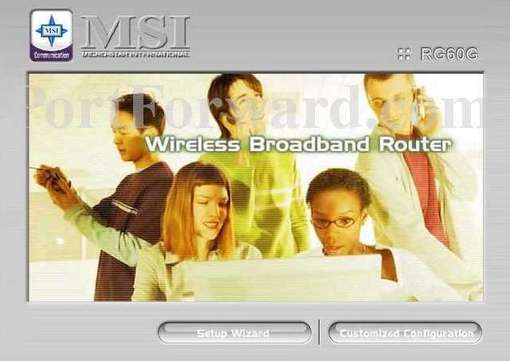

Click the Customized Configuration button.

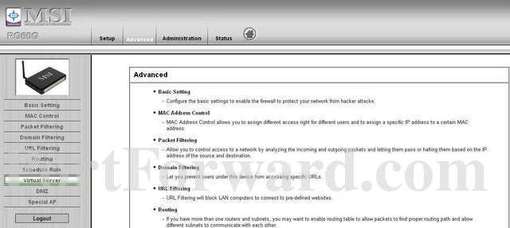

Click the Advanced link near the top of the page.
Click the Virtual Server link near the left of the page.
Here are the ports to forward for Xbox Live:
- TCP Ports: 3074
- UDP Ports: 3074
If you are looking for the ports for a different application you can find it by either:

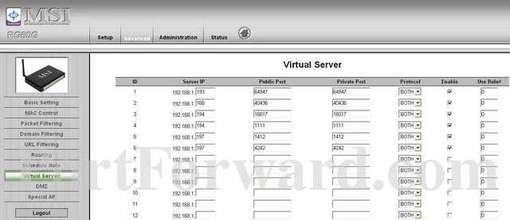

Enter the port to forward into the Public Port and the Private Port boxes.
Use the Protocol dropdown box to choose Both.
Enter the IP address that you want to forward these ports to in the Server IP box. You can enter either the IP address of your computer or the IP address of another computer or device on your network.
In the Enabled checkbox put a checkmark.
When you're finished, click Save near the bottom of the screen to save your changes.
Test if Your Ports are Open
Now that you have forwarded ports on the MSI RG60G you should test to see if your ports are forwarded correctly.
To test if your port has been properly forwarded, you can use our Network Utilities tool, which includes a free Open Port Checker. Our Open Port Check tool is the only online port checking tool with Guaranteed Results.

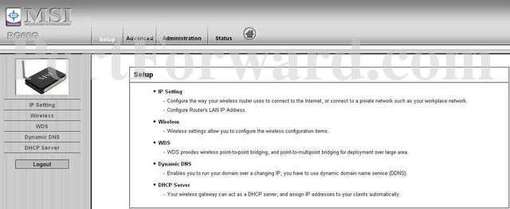

MSI RG60G Router Screenshots
