Thomson-Alcatel TG797 routers include a very basic firewall that helps protect your home network form unwanted access from the internet. Since this firewall blocks incoming connections you may need open a port through it for certain games and applications. This process of opening a port is frequently called a port forward, since you are forwarding a port from the internet to your home network.
The basic process to open a port is:
- Setup a static IP address on either your computer or device that you want to forward a port to.
- Login to your Thomson Alcatel TG797 router.
- Navigate to the port forwarding section.
- Click the Toolbox button.
- Click the Game & Application Sharing link.
- Click the Create a new game or application link.
- Enter a name in the Name box.
- Click the Manual Entry of Port Maps radio button.
- Click the Next button.
- Create a port forward entry.
While these steps might seem difficult at first, we will walk you through each step for your Thomson-Alcatel TG797 router.
We think that forwarding a port should be easy. That's why we created Network Utilities. Our software does everything that you need to forward a port.
When you use Network Utilities you get your port forwarded right now!
It is important to setup a static ip address in the device that you are forwarding a port to. This ensures that your ports will remain open even after your device reboots.
- Recommended - Our free Static IP Setter will set up a static IP address for you.
- Another way to get a permanent IP address is to set up a DHCP reservation.
- Or, manually create a static ip address with our Static IP Guides.
This step is important because you want a permanent IP address in your device. If you do not set up a permanent IP address in your device, then when you device reboots it may get a new IP address.
Now we are going to login to your Thomson-Alcatel TG797 router. Your router has a web interface, so you will login to it using your web browser. This can be either Chrome, Firefox, Internet Explorer, or Edge. It usually does not matter which browser you choose to use.
Open up your web browser and find the address bar. It should look something like this:
Above is an example of what a web browser address bar looks like. Find the address bar in your router and type in your router's IP address.
The default Thomson Alcatel TG797 IP Address is: 192.168.1.254
After entering the IP address of your router you can simply press enter. If all goes well you will see the following screen:

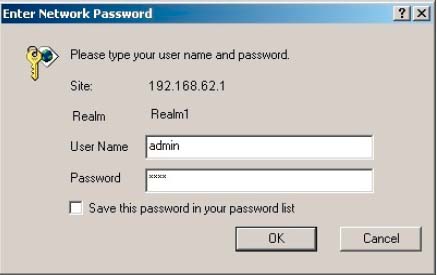

You should see a box prompting you for your username and password.
- The Default Thomson Alcatel TG797 Router Username is: Administrator
- The Default Thomson Alcatel TG797 Router Password is: blank
Enter your username and password, and then click the Login button to log in to your Thomson-Alcatel TG797 router.
Thomson-Alcatel Usernames and Passwords
If your username and password do not work then please visit our Default Thomson Alcatel Router Passwords page.
If you still can't login to your router because you forgot your Thomson-Alcatel TG797 router username and password, use our How to Reset a Router Password guide to set your Thomson-Alcatel TG797 router back to its factory settings.

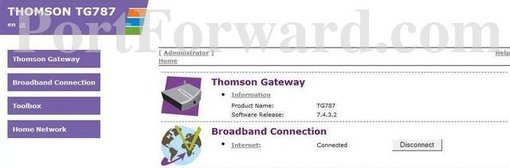

Now we need to find the port forwarding section in your router. Here's how you do it. Starting from the first page in your router:

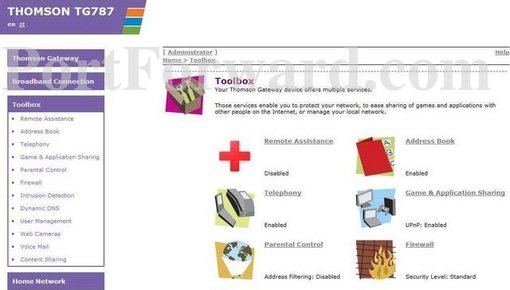

Click the Toolbox button near the left of the page.

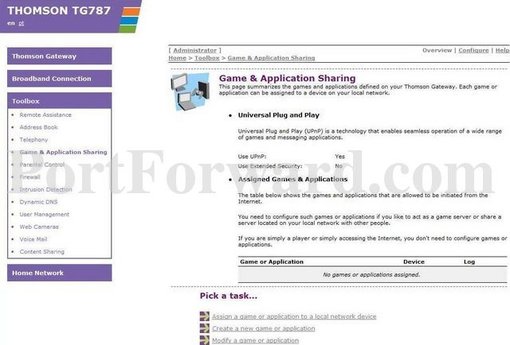

Click the Game & Application Sharing link near the left of the page.
Click the Create a new game or application link near the bottom of the page.

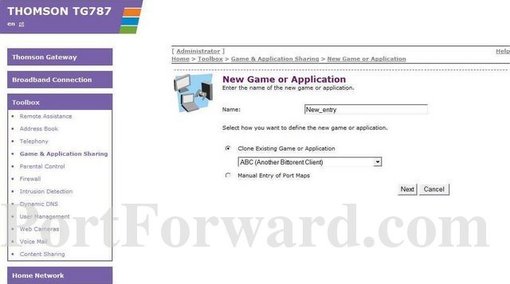

Enter the name of the program into the Name box. It doesn't really matter what you put into this box, but something that will remind you why these ports are being forwarded would be a good idea.
Put a dot into the Manual Entry of Port Maps radio button.
Click the Next button near the bottom of the page.
Here are the ports to forward for Xbox Live:
- TCP Ports: 3074
- UDP Ports: 3074
If you are looking for the ports for a different application you can find it by either:
- Browsing our List of Games
- Check out our our List of Games by Genre
- See our List of all Applications

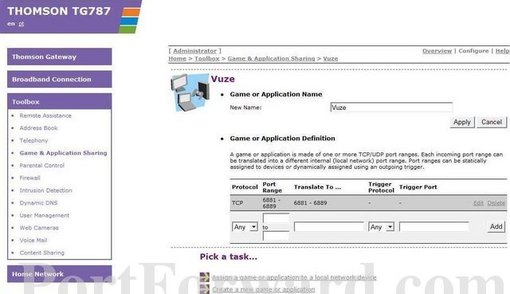

The protocol that you want to forward is selected from the Protocol box.
If you are just forwarding a single port number then you can simply enter that same number into both the Translate To, Top Port Range and the Bottom Port Range boxes. If you are forwarding a range of ports, usually separated by a hyphen, then you need to enter the lowest number of that range into the Translate To, Top Port Range box and then enter highest number into the Bottom Port Range box.
After you are done click the Add button.
Click the Assign a game or application to a local network device link near the bottom of the page.
Use the Device box to choose a device to forward ports to. This box contains a list of device names that are visible on your network.
Select the application you created using the Game or Application drop down box. Then click Add to enable it.
Your ports should now be open. It is time to test them.
Test if Your Ports are Open
Now that you have forwarded ports on the Thomson-Alcatel TG797 you should test to see if your ports are forwarded correctly.
To test if your port has been properly forwarded, you can use our Network Utilities tool, which includes a free Open Port Checker. Our Open Port Check tool is the only online port checking tool with Guaranteed Results.
