ZyXEL Prestige2602H-61C routers include a very basic firewall that helps protect your home network form unwanted access from the internet. Since this firewall blocks incoming connections you may need open a port through it for certain games and applications. This process of opening a port is frequently called a port forward, since you are forwarding a port from the internet to your home network.
The basic process to open a port is:
- Setup a static IP address on either your computer or device that you want to forward a port to.
- Login to your ZyXEL Prestige 2602H 61C router.
- Navigate to the port forwarding section.
- Click the NAT link.
- Click Edit Details.
- Create a port forward entry.
While these steps might seem difficult at first, we will walk you through each step for your ZyXEL Prestige2602H-61C router.
It is important to setup a static ip address in the device that you are forwarding a port to. This ensures that your ports will remain open even after your device reboots.
- Recommended - Our free Static IP Setter will set up a static IP address for you.
- Another way to get a permanent IP address is to set up a DHCP reservation.
- Or, manually create a static ip address with our Static IP Guides.
This step is important because you want a permanent IP address in your device. If you do not set up a permanent IP address in your device, then when you device reboots it may get a new IP address.
Now we are going to login to your ZyXEL Prestige2602H-61C router. Your router has a web interface, so you will login to it using your web browser. This can be either Chrome, Firefox, Internet Explorer, or Edge. It usually does not matter which browser you choose to use.
Open up your web browser and find the address bar. It should look something like this:
Above is an example of what a web browser address bar looks like. Find the address bar in your router and type in your router's IP address.
The default ZyXEL Prestige 2602H 61C IP Address is: 192.168.1.1
After entering the IP address of your router you can simply press enter. If all goes well you will see the following screen:

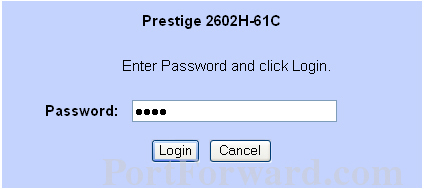

You should see a box prompting you for your username and password.
- The Default ZyXEL Prestige 2602H 61C Router Username is: NONE
- The Default ZyXEL Prestige 2602H 61C Router Password is: admin
Enter your username and password, and then click the Login button to log in to your ZyXEL Prestige2602H-61C router.
ZyXEL Usernames and Passwords
If your username and password do not work then please visit our Default ZyXEL Router Passwords page.
If you still can't login to your router because you forgot your ZyXEL Prestige2602H-61C router username and password, use our How to Reset a Router Password guide to set your ZyXEL Prestige2602H-61C router back to its factory settings.

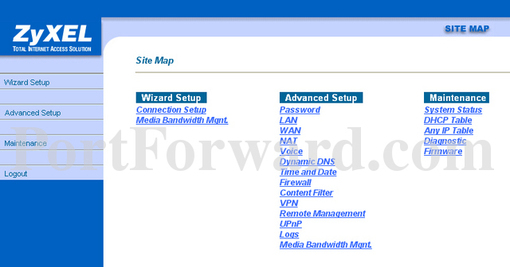

Now we need to find the port forwarding section in your router. Here's how you do it. Starting from the first page in your router:

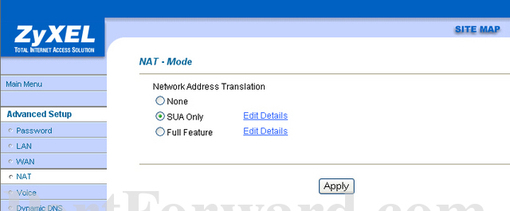

Click the NAT link near the center of the page.
There should be a dot in the SUA Only setting. If this isn't the case, you can not setup port forwarding without making a major change to your network. I wouldn't advise changing this unless you know what you are doing. Alright, if there is a dot in the SUA Only setting, go ahead and click Edit Details.
Here are the ports to forward for Xbox Live:
- TCP Ports: 3074
- UDP Ports: 3074
If you are looking for the ports for a different application you can find it by either:

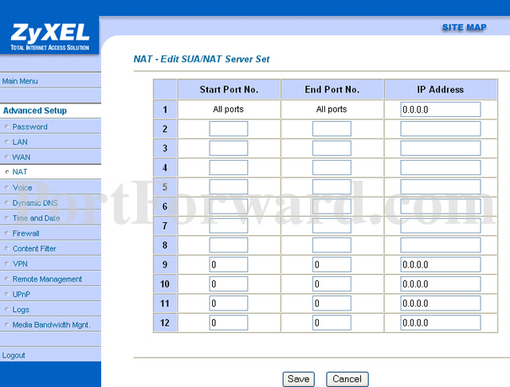

If you are only forwarding a single port number then enter that number into both the Start Port No. and the End Port No. boxes. If you are forwarding a range of ports separated by a hyphen then enter the lowest number of that range into the Start Port No. box and the highest number of that range into the End Port No. box.
You need to enter the IP address that you are forwarding ports to in the IP Address box. It's possible for this to be either the IP address of your computer or any other IP address on your network that you want ports forwarded to.
When you're finished, click Save near the bottom of the screen to save your changes.
Test if Your Ports are Open
Now that you have forwarded ports on the ZyXEL Prestige2602H-61C you should test to see if your ports are forwarded correctly.
To test if your port has been properly forwarded, you can use our Network Utilities tool, which includes a free Open Port Checker. Our Open Port Check tool is the only online port checking tool with Guaranteed Results.
ZyXEL Prestige2602H-61C Router Screenshots
