Simple Edimax BR-6104K Router Port Forwarding Steps

This is the open port guide for the Edimax BR-6104K. We also have the following related guides:

Pick the guide that most closely matches your router.

Edimax BR-6104K routers include a very basic firewall that helps protect your home network form unwanted access from the internet. Since this firewall blocks incoming connections you may need open a port through it for certain games and applications. This process of opening a port is frequently called a port forward, since you are forwarding a port from the internet to your home network.

The basic process to open a port is:

  1. Setup a static IP address on either your computer or device that you want to forward a port to.
  2. Login to your Edimax BR-6104K router.
  3. Navigate to the port forwarding section.
    • Click the General Setup link.
    • Click the Firewall link.
    • Click the Disable radio button.
    • Click the NAT link.
    • Click the Port Forwarding or the Virtual Server button to forward ports.
  4. Create a port forward entry.

While these steps might seem difficult at first, we will walk you through each step for your Edimax BR-6104K router.



We think that forwarding a port should be easy. That's why we created Network Utilities. Our software does everything that you need to forward a port.

Get Started Now!

When you use Network Utilities you get your port forwarded right now!

Step 1

It is important to setup a static ip address in the device that you are forwarding a port to. This ensures that your ports will remain open even after your device reboots.

  • Recommended - Our free program will setup a static IP address for you.
  • Or follow our Static IP Address guides to setup a static IP address.

After setting up a static ip address on your devices you need to login to your router.

Step 2

Now we are going to login to your Edimax BR-6104K router. Your router has a web interface, so you will login to it using your web browser. This can be either Chrome, Firefox, Internet Explorer, or Edge. It usually does not matter which browser you choose to use.

Open up your web browser and find the address bar. It should look something like this:


192.168.2.1

In the picture above the address bar has 192.168.2.1 in it. Just replace all of that with the IP address of your Edimax BR-6104K router. Your router's IP address can also be refered to as your computer's default gateway.

By default the IP address is set to: 192.168.2.1

After entering the IP address of your router you can simply press enter. If all goes well you will see the following screen:

Edimax BR-6104K

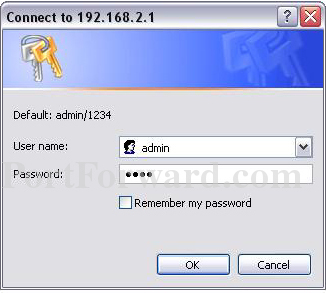

You should see a box prompting you for your username and password.

  • The Default Edimax BR-6104K Router Username is: admin
  • The Default Edimax BR-6104K Router Password is: 1234

Enter your username and password, and then click the Login button to log in to your Edimax BR-6104K router.

Edimax Usernames and Passwords

If your username and password do not work then please visit our Default Edimax Router Passwords page.

If you still can't login to your router because you forgot your Edimax BR-6104K router username and password, use our How to Reset a Router Password guide to set your Edimax BR-6104K router back to its factory settings.

Step 3

Now we need to find the port forwarding section in your router. Here's how you do it. Starting from the first page in your router:

Edimax BR-6104K

Click the General Setup link near the right of the page.

Edimax BR-6104K

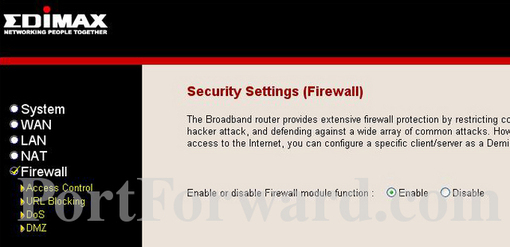

Click the Firewall link near the left of the page.

Put a dot into the Disable radio button.

Click the NAT link near the left of the page.

Edimax BR-6104K

This router has two different sections that allow you to forward ports. One section allows you to forward a range of ports, and the other allows you to forward a single port. To forward a range of ports, click Port Forwarding. To forward a single port, click Virtual Server.

Edimax BR-6104K

Step 4

Here are the ports to forward for Xbox Live:

TCP Ports:3074
UDP Ports:3074

If you are looking for the ports for a different application you can find it by either:

Forwarding a Port Range

Put a checkmark in the Enable Port Forwarding checkbox.

Enter the IP address that you want to forward these ports to into the Private IP box. Note that if you are forwarding ports so you can run a program on a device other than your computer then you can enter your device's IP address into that box instead.

Select the required protocol for these ports from the Type dropdown box.

If you are only forwarding a single port number then enter that number into both the Left Port Range and the Right Port Range boxes. If you are forwarding a range of ports separated by a hyphen then enter the lowest number of that range into the Left Port Range box and the highest number of that range into the Right Port Range box.

You need to name this entry in the Comment box. The name does not make any difference in the forward; it's just there so that you can remember later why you setup this forward.

When you are all done click the Add button.

Forwarding a Single Port

Make sure that the Enable Virtual Server checkbox is checked.

You need to enter the IP address that you are forwarding ports to in the Private IP box. It's possible for this to be either the IP address of your computer or any other IP address on your network that you want ports forwarded to.

Enter the same port number to be forwarded into the Private Port and the Public Port boxes.

Use the Type dropdown box to select the protocol type of the ports you are forwarding.

You need to name this entry in the Comment box. The name does not make any difference in the forward; it's just there so that you can remember later why you setup this forward.

When you are done click the Add button.

Your ports should now be open. It is time to test them.

Test if Your Ports are Open

Now that you have forwarded ports on the Edimax BR-6104K you should test to see if your ports are forwarded correctly.

To test if your port has been properly forwarded, you can use our Network Utilities tool, which includes a free Open Port Checker. Our Open Port Check tool is the only online port checking tool with Guaranteed Results.
