Sitecom WL-153 routers include a very basic firewall that helps protect your home network form unwanted access from the internet. Since this firewall blocks incoming connections you may need open a port through it for certain games and applications. This process of opening a port is frequently called a port forward, since you are forwarding a port from the internet to your home network.
The basic process to open a port is:
- Setup a static IP address on either your computer or device that you want to forward a port to.
- Login to your Sitecom WL-153 router.
- Navigate to the port forwarding section.
- Click the Advanced Settings link.
- Click the Port fw. link.
- Create a port forward entry.
While these steps might seem difficult at first, we will walk you through each step for your Sitecom WL-153 router.
We think that forwarding a port should be easy. That's why we created Network Utilities. Our software does everything that you need to forward a port.
When you use Network Utilities you get your port forwarded right now!
It is important to setup a static ip address in the device that you are forwarding a port to. This ensures that your ports will remain open even after your device reboots.
- Recommended - Our free Static IP Setter will set up a static IP address for you.
- Another way to get a permanent IP address is to set up a DHCP reservation.
- Or, manually create a static ip address with our Static IP Guides.
This step is important because you want a permanent IP address in your device. If you do not set up a permanent IP address in your device, then when you device reboots it may get a new IP address.
Now we are going to login to your Sitecom WL-153 router. Your router has a web interface, so you will login to it using your web browser. This can be either Chrome, Firefox, Internet Explorer, or Edge. It usually does not matter which browser you choose to use.
Open up your web browser and find the address bar. It should look something like this:
Above is an example of what a web browser address bar looks like. Find the address bar in your router and type in your router's IP address.
The default Sitecom WL-153 IP Address is: 192.168.0.1
After entering the IP address of your router you can simply press enter. If all goes well you will see the following screen:
You should see a box prompting you for your username and password.
- The Default Sitecom WL-153 Router Username is: admin
- The Default Sitecom WL-153 Router Password is: admin
Enter your username and password, and then click the Login button to log in to your Sitecom WL-153 router.
Sitecom Usernames and Passwords
If your username and password do not work then please visit our Default Sitecom Router Passwords page.
If you still can't login to your router because you forgot your Sitecom WL-153 router username and password, use our How to Reset a Router Password guide to set your Sitecom WL-153 router back to its factory settings.
Now we need to find the port forwarding section in your router. Here's how you do it. Starting from the first page in your router:

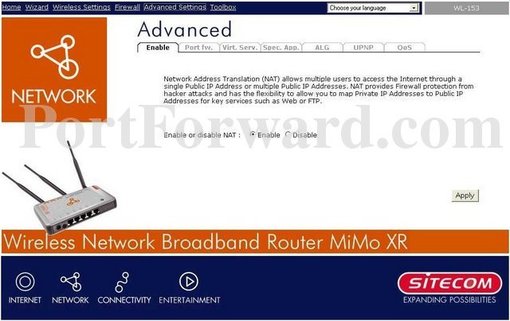

Click the Advanced Settings link near the top of the page.
Click the Port fw. link near the top of the page.
Here are the ports to forward for Xbox Live:
- TCP Ports: 3074
- UDP Ports: 3074
If you are looking for the ports for a different application you can find it by either:
- Browsing our List of Games
- Check out our our List of Games by Genre
- See our List of all Applications

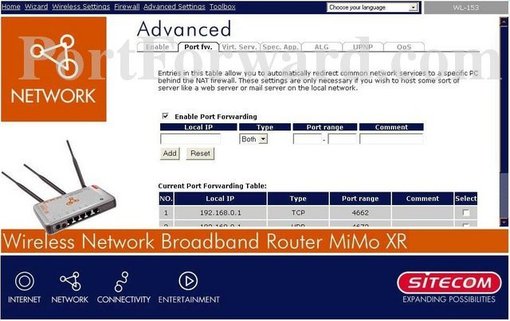

Put a checkmark in the Enable Port Forwarding checkbox.
Enter the IP address of the device that you want to forward ports to into the Local IP box. This can be either the IP address of your computer or the IP address of another device on your network.
In the Type box select the protocol that you want to forward these ports over.
If you are only forwarding a single port number then enter that number into both the left Port range and the right Port range boxes. If you are forwarding a range of ports separated by a hyphen then enter the lowest number of that range into the left Port range box and the highest number of that range into the right Port range box.
You need to name this entry in the Comment box. The name does not make any difference in the forward; it's just there so that you can remember later why you setup this forward.
Click the Add button when you are all done.
Your ports should now be open. It is time to test them.
Test if Your Ports are Open
Now that you have forwarded ports on the Sitecom WL-153 you should test to see if your ports are forwarded correctly.
To test if your port has been properly forwarded, you can use our Network Utilities tool, which includes a free Open Port Checker. Our Open Port Check tool is the only online port checking tool with Guaranteed Results.

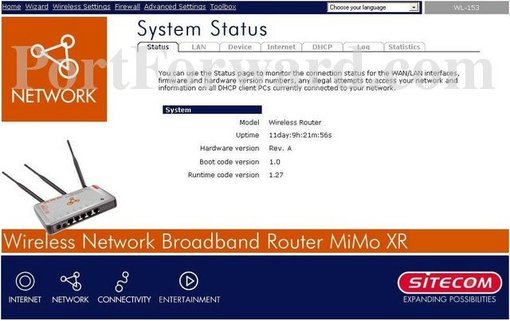

Sitecom WL-153 Router Screenshots
